Detailed Description
The Spartan is a plastic split-apart rescue litter that features a patented LocSafe Connection system and StratLoad™ attachment points.

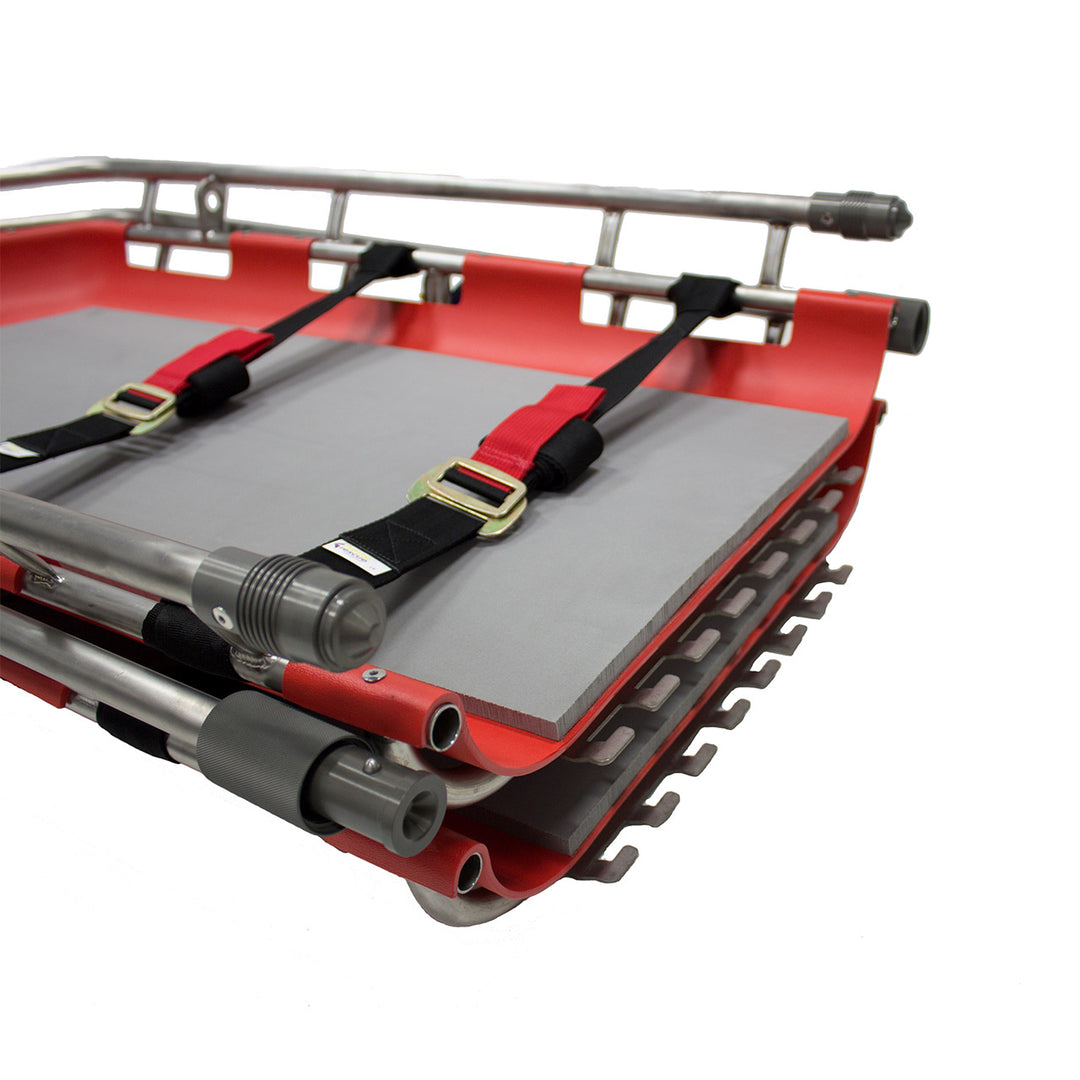

The unique split-apart design allows for a completely secure connection between the parts of the rescue litter, without the use of pins or tubes sliding into each other. The LocSafe feature enables a quick and easy visual check to ensure connections are secure throughout an operation, while a small button prevents the connection from being disengaged during the rescue process.
The top rail is completely exposed, eliminating the need for rescuers to find cutouts and providing unencumbered access to grab the rail at any location.
Standard features include a 19.8 mm (7/8 inch) top tube, making it easier to hold compared to smaller tube frames. Four StratLoad™ attachment points allow for quick, easy, and safer clipping of a litter bridle, while also protecting carabiners from wall and rock contact.
Custom colour rescue litters and aluminum backing are available. Additional charges and minimum quantities apply to all custom orders. For more details, please contact your representative or email info@traverserescue.com.
Product Features
- Material Options: Available in stainless steel and titanium
- Base Design: Recessed sliding surface on the bottom for handling rough terrain and protecting the frame
- Shell: Outer shell made of high molecular polyethylene (HMWPE)
- Top Rail: Completely exposed for easier connectability
- Attachment System: StratLoad™ feature included as standard

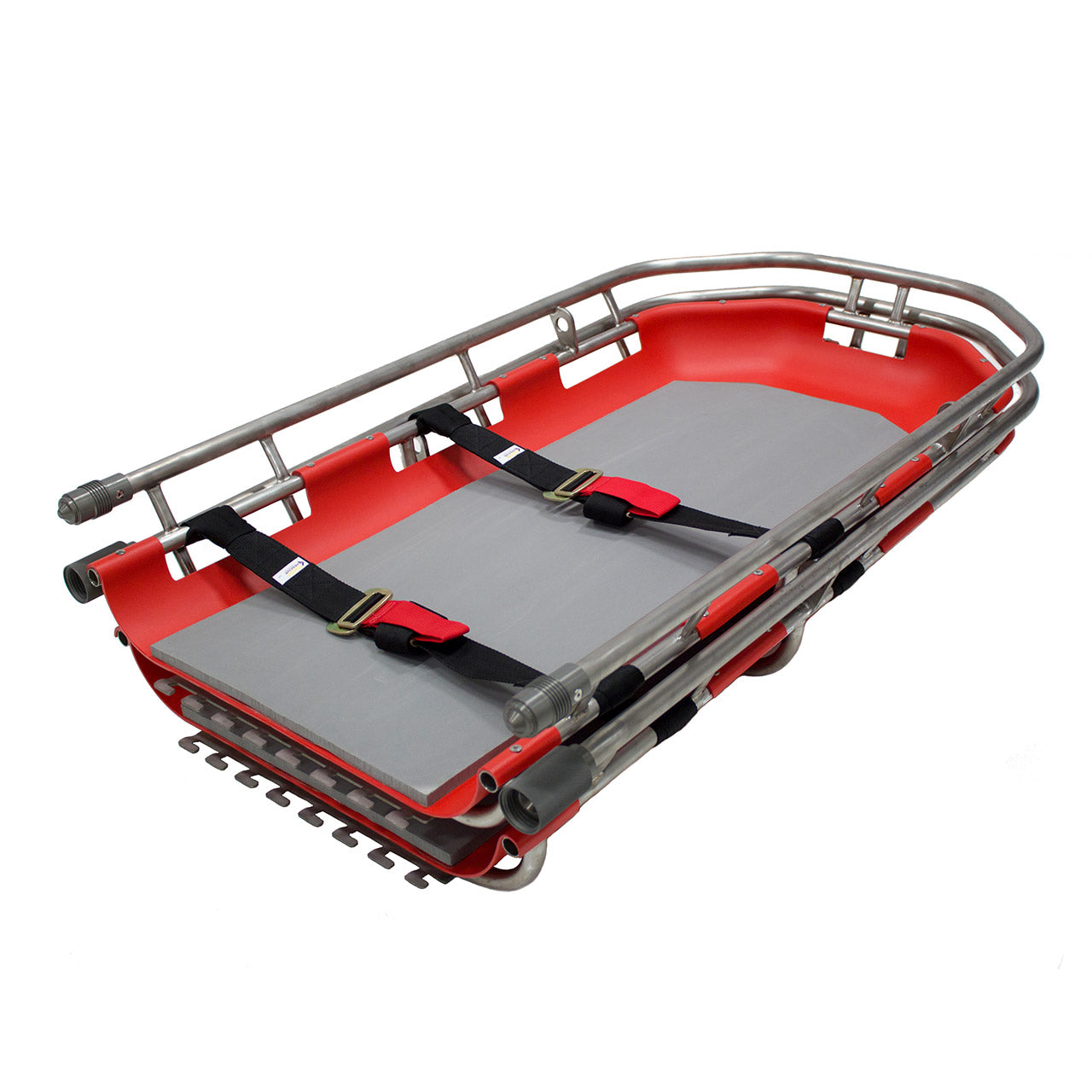

- Construction: Split-apart design for improved storage capability
- Top Tube: 7/8” diameter for easier grip, even with thick gloves
View Detailed Information: Spartan Split-Apart Rescue Litter (PDF)
Specifications
- Length: 85.8 in (217.8 cm)
- Width: 24.9 in (63.2 cm)
- Depth: 7.0 in (17.8 cm)
- Weight - SS*: 35 lbs (16 kg)
- Weight - TI*: 25 lbs (11 kg)
- Rated Load Limit: 2500 lbs (11 kN)
*SS (Stainless Steel), TI (Titanium)
